TYPICAL MIDNIGHT BLUE SLIM STYLE LIGHT SHOW CONVERSION
This is the most basic of the Solid State, slim-bodied Light show conversions that Studio California has done over the last dozen years. We've done about 30 now (and counting) and the components have evolved from store-bought circuitry and hand-wired high-intensity discrete 5mm LEDs, to state-of-the-art custom circuit boards with surface-mount subminiature components.

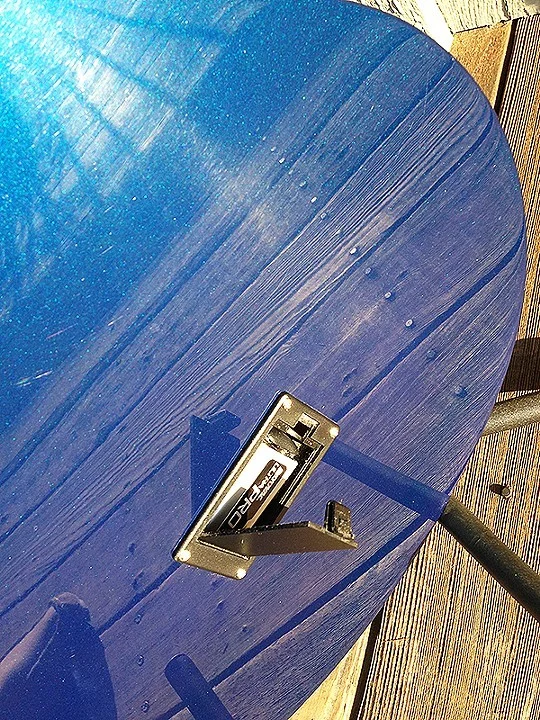

No matter what the build date of the Solid State Studio California Light Show guitar or bass, the powered-by-9-volt battery circuitry is the same, and the lenses with their swirly plastic diffuser underlays are at the heart of the concept. It's a tidy package.

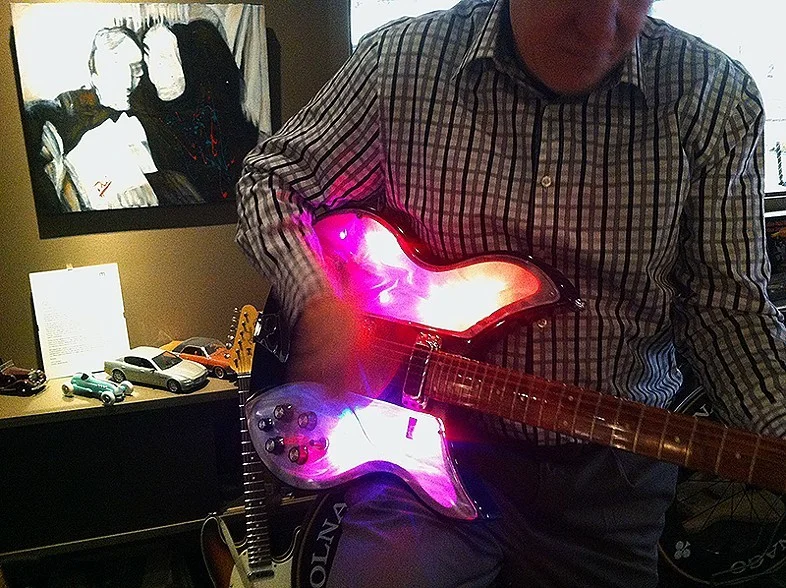

The lower right action photo shows the brightness of the LEDs in a daylit room as the guitar is being strummed.
